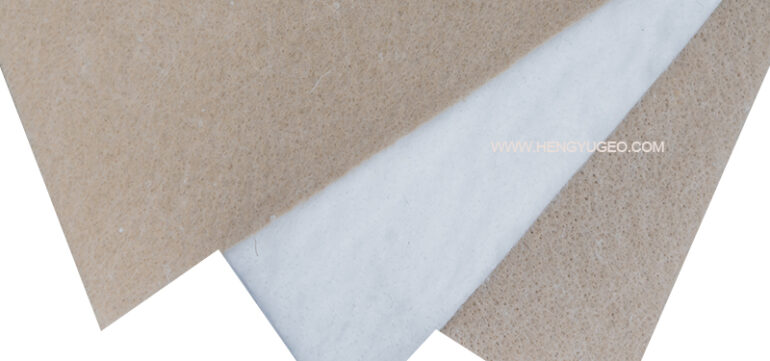

Short Nonwoven Geotextile
Product Introduction
Short filament nonwoven geotextile is manufactured using nonwoven machinery, with polyester staple fiber as the primary raw material. It is produced through a series of processes including fiber opening, carding, web laying, and needle punching.
Performance Characteristics
High Strength: Made from synthetic fibers, it maintains excellent strength and elongation in both wet and dry conditions.
Corrosion Resistance: Offers long-term durability in soils and water with varying pH levels.
Permeability: The voids between fibers provide effective water permeability and seepage performance.
Microbial Resistance: Resistant to microorganisms and insect damage.
Easy Installation: Lightweight and flexible, facilitating easy transport, laying, and construction.
Lightweight & Cost-Effective: Combines low weight and cost with strong resistance to corrosion, along with functions such as filtration, drainage, isolation, and reinforcement.
Product Specifications
Weight: 100g/m²–1000g/m²
Width: 1m–8m
Roll Length: 50m–100m (customizable according to customer requirements)
Send us the required specifications
Technical indicators
Old standard for short nonwoven geotextile ( GB/T 17638- 1998)
| Item | Specification | |||||||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| Mass deviation per unit area | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| thicknesses | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
| Width deviation | -0.5 | |||||||||||
| breaking strength KN/m≥ | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | vertically and horizontally |
| Elongation at break % | 25~100 | |||||||||||
| CBR Top Break Power kN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
| tearing force kN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | vertically and horizontally |
| equivalent pore size | 0.07~0.2 | |||||||||||
| vertical permeability coefficient | Kx(10-2~10-3) | K=1.0~9.9 | ||||||||||
New standard for short nonwoven geotextile ( GB/T 17638- 2017 )
| Item | Nominal breaking strength /(kN/m) | |||||||||
| 3 | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 | ||
| 1 | Longitudinal and transverse rupture strength /(KN/m)≥ | 3.0 | 5.0 | 8.0 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 40.0 |
| 2 | Nominal breaking strength corresponding to the elongation /% | 20-100 | ||||||||
| 3 | damaged by groundless slander /kN ≥ | 0.6 | 1.0 | 1.4 | 1.8 | 2.5 | 3.2 | 4.0 | 5.5 | 7.0 |
| 4 | Quality deviation rate per unit area /% | ±5 | ||||||||
| 5 | Width deviation rate % | -0.5 | ||||||||
| 6 | Thickness deviation rate % | ±10 | ||||||||
| 7 | equivalent pore size O3o(O3s)/mm | 0.07-0.20 | ||||||||
| 8 | vertical permeability coefficient cm/s | Kx(10¹-10³) where: K=1.0-9.9 | ||||||||
| 9 | vertical and horizontal tearing /kN≥ | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.00 |
| 10 | Acid and alkali resistance (strength retention) %≥ | 80 | ||||||||
| 11 | Oxidation resistance (strength retention) %≥ | 80 | ||||||||
| 12 | UV resistance (strength retention) %≥ | 80 | ||||||||
