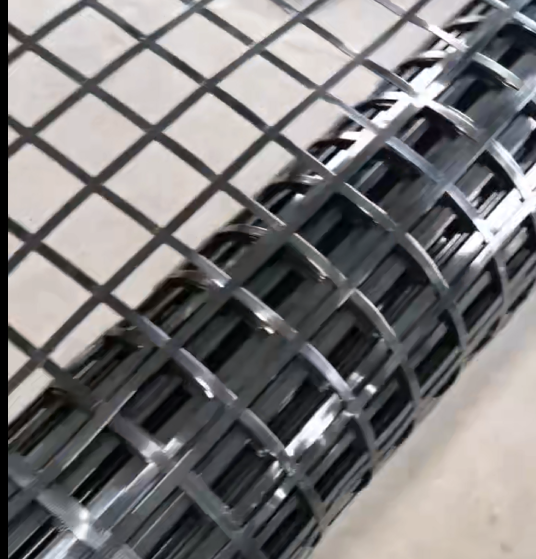

PET Geogrid PP Geogrid
Product Specifications
- Raw Material: PP(Polypropylene), PET(Polyethylene Terephthalate)
- Width: 5.8 meters or Customzied Width
- Length: 50 meters or Customzied Length
LIAONING HENGYU NEW MATERIALS CO LTD
Geogrid - High-Strength Biaxial & Uniaxial Soil Reinforcement
High-performance Geogrid designed for superior soil reinforcement and stabilization. Available in biaxial and uniaxial configurations, our geogrids provide outstanding load distribution for retaining walls, road bases, slopes, and large-scale civil engineering projects.
- High Tensile Strength: Ultimate tensile strength up to 200kN/m
- Specifications: Aperture size 20mm – 80mm; roll width 1m – 6m
- Durable Materials: PP, HDPE, or polyester (PET) available for all environments
- Flexible Options: Biaxial, uniaxial, and fiberglass geogrid types available
Reliable geotechnical solutions with strict GB/T 17689-2008 quality compliance.

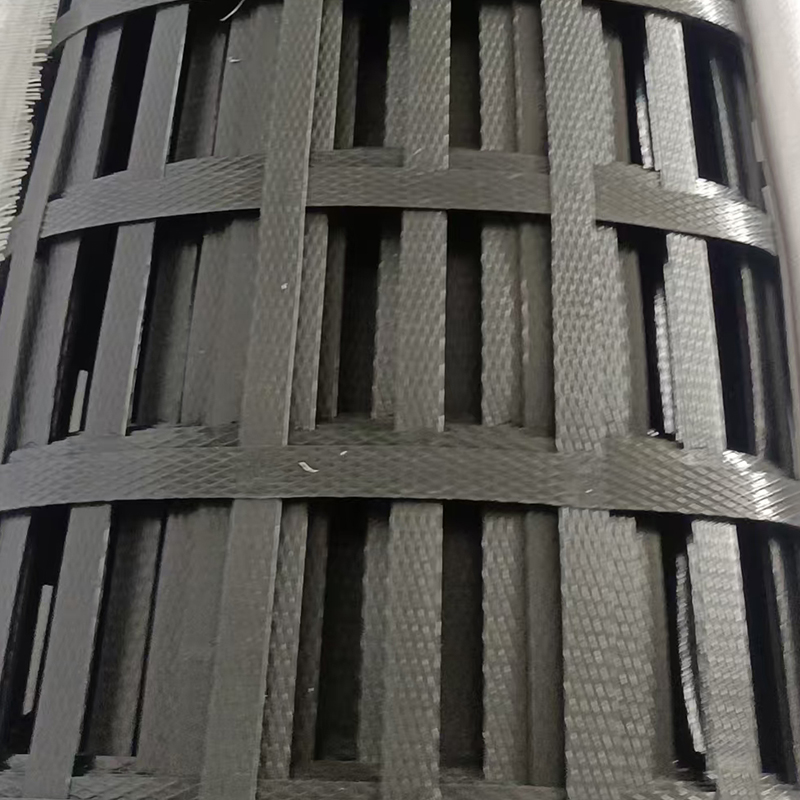

Premium Biaxial & Uniaxial Geogrid rolls ready for global shipment.
Product Overview
Geogrid is a high-performance geosynthetic reinforcement material manufactured from polypropylene (PP), high-density polyethylene (HDPE), or polyester (PET) through extrusion, stretching, or weaving processes. It combines exceptional tensile strength with an open grid structure to interlock with soil, aggregate, or rock for superior load distribution.
How does Geogrid soil reinforcement work?
The core mechanism of geogrid reinforcement is mechanical interlock. Soil or aggregate particles penetrate the geogrid apertures and become confined, creating a composite layer with dramatically increased bearing capacity. This interlocking effect distributes loads over a wider area, reducing stress on the subgrade below.
Liaoning Hengyu utilizes advanced extrusion and biaxial stretching technology to produce geogrids with uniform aperture geometry and consistent tensile strength in all directions, strictly adhering to GB/T 17689-2008 standards to guarantee reliable performance in every roll.
Our geogrids offer excellent UV resistance, chemical stability, and long-term creep resistance, remaining structurally sound under sustained load in a wide range of soil and environmental conditions — making them the preferred choice for permanent ground reinforcement projects.
Typical Applications
- Road base and subgrade stabilization for highways and airport runways
- Retaining walls and steep slope reinforcement for embankments
- Railway track bed reinforcement and ballast confinement
- Soft ground improvement and foundation reinforcement
- Landfill base reinforcement and waste containment structures
- Mining haul roads and heavy-load industrial yard stabilization
Core Advantages of Geogrid
Our Geogrid offers outstanding soil reinforcement and load distribution performance for road construction, retaining walls, embankments, and heavy-duty ground stabilization.
High Tensile Strength
Manufactured through biaxial stretching or weaving, our geogrids achieve tensile strength up to 200kN/m, providing exceptional load-bearing capacity for heavy infrastructure and permanent reinforcement applications.
Superior Interlocking Effect
The open aperture structure allows soil and aggregate particles to interlock firmly within the grid, forming a stable composite layer that dramatically increases bearing capacity and reduces subgrade deformation.
Fast & Simple Installation
Lightweight rolls and straightforward unrolling installation significantly reduce labor costs and construction time. No special equipment is required — simply roll out, cut, and compact with fill material.
Excellent Durability
Made from chemically inert PP or HDPE materials, our geogrids resist corrosion, biological degradation, UV exposure, and a wide range of soil pH levels, ensuring reliable performance over decades of service life.
Low Creep Deformation
Optimized molecular orientation through precision stretching minimizes long-term creep under sustained load, maintaining structural integrity and reinforcement efficiency throughout the design life of the structure.
Project-Specific Specs
Available in aperture sizes 20mm – 80mm with tensile strength from 30kN/m to 200kN/m. Liaoning Hengyu provides Biaxial, Uniaxial, and Fiberglass Geogrid types to meet specific project load and soil conditions.
Technical Indicators
Standard Compliance: JT/T 1432.1-2022 (Biaxial Welded Geogrid)
| Properties (Units) | Specifications | |||
|---|---|---|---|---|
| 30-30 | 40-40 | 50-50 | 80-80 | |
| Longitudinal & Transverse Nominal Tensile Strength (kN/m) | ≥ 30 | ≥ 40 | ≥ 50 | ≥ 80 |
| Tensile Strength at 2% Elongation (kN/m) | ≥ 10 | ≥ 13 | ≥ 17 | ≥ 28 |
| Tensile Strength at 5% Elongation (kN/m) | ≥ 18 | ≥ 22 | ≥ 30 | ≥ 48 |
| Mass per Unit Area (g/m²) | ≥ 280 | ≥ 350 | ≥ 420 | ≥ 600 |
| Mesh Size (mm) | 30 ≤ A ≤ 60 | 30 ≤ B ≤ 60 | |||
| Width Deviation (%) | +1 | |||
| Longitudinal & Transverse Nominal Elongation (%) | ≤ 8 | |||
| Limit Detached Force of Junction (N) | ≥ 100 | |||
| UV Resistance Strength Retention Rate (%) | ≥ 80 | |||
Technical Indicators
Standard Compliance: JT/T 480-2002 (Biaxial Welded Geogrid)
| Properties (Units) | Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 25-25 | 40-40 | 50-50 | 60-60 | 80-80 | 100-100 | 125-125 | 150-150 | ||
| Tensile Yield Force (≥ kN/m) | Longitudinal | 25 | 40 | 50 | 60 | 80 | 100 | 125 | 150 |
| Transverse | 25 | 40 | 50 | 60 | 80 | 100 | 125 | 150 | |
| Yield Elongation (≤ %) | Longitudinal | 12 | 12 | 12 | 12 | 13 | 13 | 13 | 13 |
| Transverse | 12 | 12 | 12 | 12 | 13 | 13 | 13 | 13 | |
| 2% Strain Yield Force (≥ kN/m) | Longitudinal | 10 | 20 | 21 | 22 | 35 | 55 | 60 | 85 |
| Transverse | 10 | 20 | 21 | 22 | 35 | 55 | 60 | 85 | |
| 5% Strain Yield Force (≥ kN/m) | Longitudinal | 15 | 25 | 30 | 40 | 55 | 65 | 90 | 100 |
| Transverse | 15 | 25 | 30 | 40 | 55 | 65 | 90 | 100 | |
| Limit Peel Force of Adhesion / Weld Points (≥ N) | 30 | ||||||||
Geogrid Production & Quality Control
Liaoning Hengyu New Materials Co Ltd operates a specialized production line for Geogrid, utilizing advanced extrusion, stretching, and welding technology to deliver consistent tensile strength and dimensional accuracy for demanding geotechnical applications.
Manufacturing Process
- Selection of high-quality PP, HDPE, or PET raw material pellets and additives
- Extrusion and sheet forming with precise thickness and width control
- Biaxial or uniaxial stretching to align molecular chains and maximize tensile strength
- Precision punching or welding to form uniform aperture grid structure
- Automatic tension control, edge trimming, and protective roll packaging
Our advanced stretching and welding technology ensures uniform aperture geometry and consistent node strength throughout every roll, maintaining stable reinforcement performance under both static and dynamic loading conditions.
Testing & Inspection
- Raw material: Melt flow index, tensile properties, and UV stabilizer content verification
- Finished geogrid: Mass per unit area (g/m²) and aperture size measurement
- Mechanical: Tensile yield force and elongation testing (JT/T 480-2002 / JT/T 1432.1-2022)
- Junction strength: Limit peel force of adhesion and weld point integrity testing
- Roll check: Dimension verification, labeling, and appearance inspection
We provide internal laboratory test reports for every batch. Third-party certifications from SGS, BV, or INTERTEK are available to support your international tenders and project requirements.
Geogrid Packing, Delivery & Installation
Packing & Logistics
- Roll Dimensions: Width 1m - 6m; Length 50m - 100m (customizable)
- Protection: Each roll is wrapped in UV-resistant polyethylene film to prevent degradation during storage and transit
- Labeling: Detailed tags showing geogrid type (Biaxial/Uniaxial), specification (e.g. 50-50), roll weight, and batch number
- Secure Loading: Lightweight rolls are bundled and palletized for safe container sea freight and easy on-site handling
Liaoning Hengyu coordinates global logistics from our facility, ensuring Geogrid arrives in perfect condition and ready for immediate deployment on site.
Geogrid Installation Guidelines
- Surface Prep: Ensure subgrade is graded, compacted, and free of sharp debris, ruts, or soft spots before laying
- Deployment: Unroll the geogrid in the primary stress direction; keep the roll taut and flat against the prepared surface
- Joint Treatment: Overlap adjacent panels by a minimum of 30cm, or connect using plastic bodkin bars or zip ties at junction points
- Fixing: Secure edges and corners with ground pins or staples to prevent movement during aggregate placement
- Immediate Cover: Place and compact fill material promptly after laying; avoid direct vehicle traffic on exposed geogrid
Geogrid installation is fast and requires no specialized equipment, significantly reducing construction time. Our technical team can provide layout plans and overlap specifications tailored to your specific project and loading conditions.
More Geosynthetics from Liaoning Hengyu
Combine Geogrid with our geomembrane, composite materials and other geosynthetics for integrated solutions.
Request Free Geogrid Samples & Factory Price
Share your project requirements and we will recommend the optimal Geogrid specifications (Biaxial / Uniaxial / Fiberglass) with a competitive direct-from-factory quotation.
Our technical team typically replies within 12 hours with technical data sheets (TDS), price lists, and container loading solutions.
- Project Type: (e.g., Road Base, Retaining Wall, Railway, Slope, or Soft Ground)
- Geogrid Specification: Required tensile strength (kN/m) or specific model (e.g. 50-50, 80-80)
- Total Quantity: Total square meters (m²) and estimated delivery timeline
- Logistics: Destination port and preferred Incoterms (FOB/CIF/DDU)
* Note: Geogrid rolls are lightweight and space-efficient; we offer optimized loading plans to maximize container capacity and reduce your overall freight costs.
Geogrid – Frequently Asked Questions
Q1: How do I choose between Biaxial and Uniaxial Geogrid?
Selection depends on the direction and nature of the load in your application. Biaxial Geogrid distributes load equally in both longitudinal and transverse directions, making it ideal for road base stabilization, foundations, and general subgrade reinforcement. Uniaxial Geogrid is optimized for single-direction tensile strength, making it the preferred choice for retaining walls, steep slopes, and embankment reinforcement where the primary stress acts in one direction.
Q2: Does your Geogrid meet international engineering standards?
Absolutely. Our Geogrid is manufactured in strict accordance with JT/T 480-2002 and JT/T 1432.1-2022 Chinese standards, and also complies with ASTM D6637 and ISO international requirements. We can customize tensile strength (30kN/m–150kN/m), aperture size, and roll dimensions to match your specific tender specifications or local national requirements.
Q3: What are the storage requirements for Geogrid during shipment?
Geogrid rolls should be stored away from direct sunlight and heat sources to preserve UV stabilizer integrity. Liaoning Hengyu wraps all export rolls in UV-resistant polyethylene film for full protection during transit. We typically deliver within 10–15 days, ensuring rolls arrive in perfect condition and ready for immediate deployment on site.
Q4: Can we request a Geogrid sample for laboratory testing?
Yes, we provide free Geogrid samples (approx. 0.5m × 0.5m) for your quality appraisal and in-house tensile testing. For large-scale pilot projects, we can also arrange small trial rolls. Please provide your courier account (DHL/FedEx) for freight collection, and we will include a full Technical Data Sheet (TDS) and our latest factory test reports in the package.
